Description
APPLICATIONS
- For sewing light to heavy-weight fabrics, leather, vinyl, upholstery, synthetics, canvas and various coated and laminated materials.
- Especially designed for products with narrow openings.
- For stitching tubular and curved work.
- Suitable for sewing such products as hats, caps, shoes, sandals, slippers, tarpaulins, covers, sails, tents, awnings, umbrellas, bags, luggage, handbags, travelware accessories, wearing apparel, etc.
- Models 277RFS-3 & 277RBFS-3 are especially made for Tape Binding
FEATURES

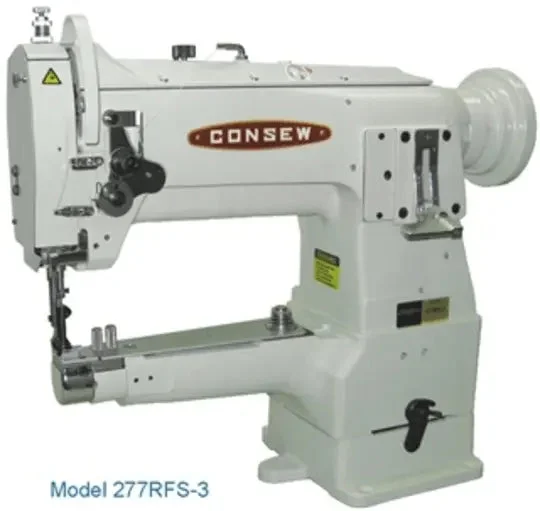

- Narrow cylinder arm — 46 mm diameter (Model 277RFS-3)
- Horizontal axis rotary hook
- Large bobbin available (Model 277RBFS-3)
- Compound feed, walking foot mechanism assures even feeding of several plies or slippery material
- Simple adjustment permits the raising and lowering of center foot which allows for sewing of different thicknesses of materials
ADDITIONAL INFORMATION
- 277RFS Parts Book
- 277RFS Instruction Manual
- 277RFS Spec Sheet (PDF)
U.S. WARRANTY: 90 Days labor on defects in materials and workmanship.
** Head Only option does not include the table, legs, Servo Motor, and LED Lamp. No assembly or residential charges necessary. Disclaimer: Due to the weight and shipping methods used for industrial machines they may experience marring and scratches during shipping. This will not affect the operation of the machine.
Please review our Freight Shipping info
SPECIFICATIONS
| Number of Needles | 1 (Single) |
| Feeding Mechanism | Walking Foot |
| Workspace | Standard Workspace |
| Standard or Full Function | Standard Functions |
| Speed, Max (S.P.M.) | 2300 |
| Stitch Length | 4.2 s.p.i. 15/64″ (6mm) |
| Work Space | 10 5/32″ x 4 11/32″ (258 x 110mm) |
| Needle | 135 x 17 |
| Bobbin | 17035 L |
| Needle Bar Stroke | 1 5/16″ (33.2mm) |
| Cylinder Diameter | 1-13/16″ Dia. (46mm) |
